DOCSIS

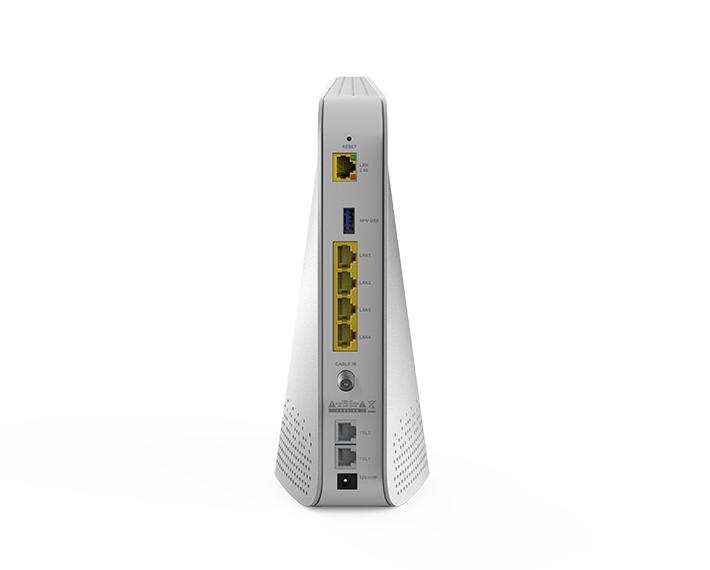

DOCSIS 3.1 Wi-Fi 6 Gateway

KAON BROADBAND DOCSIS 3.1 gateway, CableLabs® Certified, provides multi-gigabit services with the latest Wi-Fi technology, Wi-Fi 6. Its extreme speed performs wired up to 5Gbps and Wi-Fi up to 2.3Gbps, and especially Wi-Fi 6 features will enhance the Wi-Fi experience with extended coverage, enhanced Wi-Fi speed and signal, and increased capacity.

These superior performance enables service providers to provide the quality of services and multiple home network applications such as 4K UHD video streaming and AR/VR gaming.

It is backward compatible with DOCSIS 3.0 specification and is available remote management and diagnostics with TR-069 and TR-181.

Features
  • AX5700 / Wi-Fi 6
  • Dual Band
  • DOCSIS 3.1 Compliant / DOCSIS 3.0 Backward Compatible
  • PacketCable 1.5 / 2.0 Compliant
  • IPv4/IPv6 support, DSLite
  • QUANTUM, Latest Mainline OpenWrt based (ver 19.07.6)
  • SNMP, TR-069
  • CableLabs® Certified
Specifications
Product Type DOCSIS 3.1 Gateway
Channel Bonding SC-QAM 32x8 + OFDM 2 x OFDMA 2
WAN Port Ethernet WAN
Cable Port F-type Connector
LAN Port 1 x 2.5GbE LAN Port
4 x GbE LAN Ports
FXS Port 2 x FXS Ports
USB USB 3.0
Wi-Fi Standard Wi-Fi 6
- 2.4GHz: 3x3 11ax
- 5GHz: 4x4 11ax
Security Firewall, VPN, MAC based filtering, NAT, VLAN
Diagnostics / Management SNMP, TR-069
